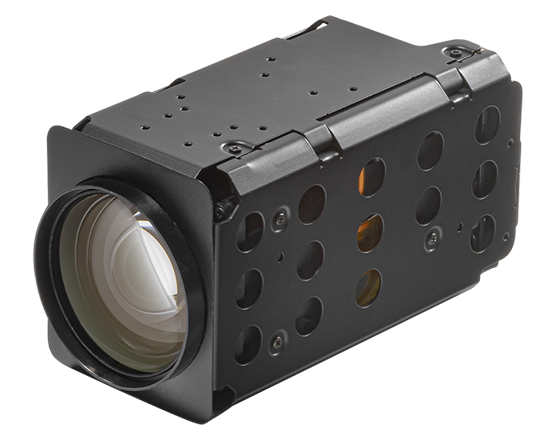

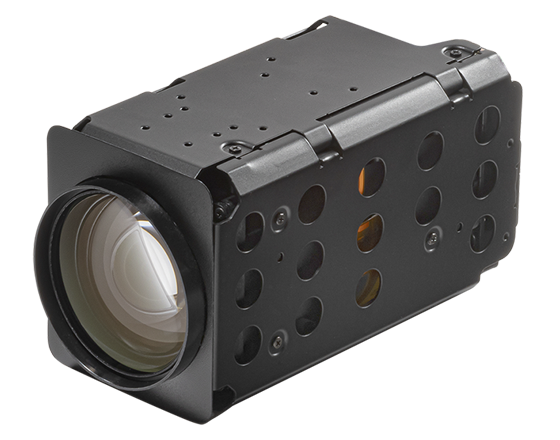

ROLLING SHUTTER 2MP

ATC-HZ5628W-LP

1/2" Progressive Scan CMOS

336x AF Zoom(28x optical zoom, 12x digital zoom)

1080p 60/50/30/25fps

Mechanical Day&Night

True WDR

3D DNR, Defog

UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

SPECS

  • Image Sensor

    1/2" Progressive Scan CMOS

  • Effective Pixels

    2.13MP 1945(H) x 1097(V)

  • Video Output Mode

    LVDS / Parallel / CVBS

  • Max. Video Resolution

    LVDS / Parallel :1080p@60(50fps)

  • Synchronization System

    Internal / External Option

  • Min.Illumination

    Day mode: 0.1(Lux(F1.6)

    Night mode: 0.05Lux(F1.6/ IR-cut filter on)

    Sens-Up off, AGC45dB

  • S/N Rate

    More than 55dB(AGC off, Sense-up off)

  • Lens

    AF Optical zoom lens(DC Iris), IR Corrective

    f=6.7mm~190mm

    F1.6(W)~4.7(T)

    Horizontal 58.4°(W)~2.1°(T), Vertical 34.1°(W)~1.2°(T)

  • Zoom Ratio

    Optical 28x / Digital 12x

  • Focus Min.Working Distance

    0.1m(Wide)/1.5m(Tele)~Infinite

  • Focus Control

    Auto/Interval/One Push/Manual/Preset

  • AE mode

    Auto/Shutter Priority/Iris Priority/AGC Priority/Manual

  • Brightness

    0~14

  • Manual Shutter

    1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10,000

  • Manual Iris

    F1.6~F32, Close

  • Sense-up

    Off~32fields

  • ETC

    Spot AE, Slow AE

  • D&N Mode

    Auto/Day(Color)/Night(BW)/External-H or L

  • White Balance

    AUTO/One push/Indoor/Outdoor/ATWManual

  • Image Freeze

    Off/On

  • Image Flip

    Off/Horizontal/Vertical/H+V(180° Flip)

  • Privacy Mask Zone

    8 Zones/14 mask color selectable

  • Digital Image Stabilization

    Yes

  • Motion Detection

    4 Zones

  • D-WDR

    Off/Low/Middle/High

  • WDR

    Off/On, Adjustable(Level:0~29, Contrast:0~5, Bright: 0~19)

  • BLC

    Off/On, Area selectable

  • HLC

    Off/On, Area selectable

  • AGC

    Max.72dB

  • Sharpness

    Adjustable(0~15)

  • 3D-DNR

    Off/Low/Middle/High

  • 2D-DNR

    Off/Low/Middle/High

  • Defog

    Off/On/Auto

  • Language

    English

  • UART

    RS232 TTL +5.0V(+3.3V compatible)

    VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection)

    2400/4800/9600/19200/38400/57600/115200bps

  • Supply Voltage

    12VDC(9V to 15VDC)

  • Power Consumption

    Max.6.8W / Non-working zoom&focus 4.2W

  • Dimension(mm)

    55.0X64.0X123mm

  • Weight

    Approx.380g

  • Operating Temperature

    -10℃~+50℃, Humidity(Less than 90%)

  • Storage Temperature

    -20℃~+60℃, Humidity(Less than 90%)
