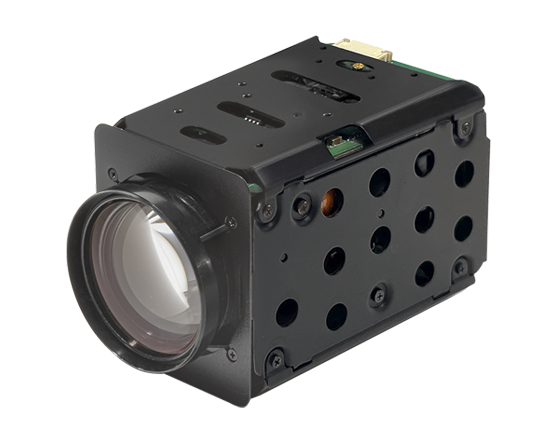

ROLLING SHUTTER 2MP

ATC-HZ7825Z-LT

1/2.8” Progressive Scan CMOS

300x AF Zoom(25x optical zoom, 12x digital zoom)

1080p60/50fps

Mechanical Day&Night

True WDR

3D DNR, Defog

UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

Optional product: ATC-HZ7830Z-LTA(Video output: LVDS,TVI,AVI,HD/EX-SDI,CVBS)

SPECS

  • Image Sensor

    1/2.8" Progressive Scan CMOS

  • Effective Pixels

    2.13MP 1945(H) x 1097(V)

  • Video Output Mode

    LVDS/TVI/HD-SDI/EX-SDI(V1.0)/CVBS

  • Max. Video Resolution

    HD-SDI/LVDS:1080p@60(50fps), EX-SDI/TVI:1080p@30(25fps)

  • Synchronization System

    Internal

  • Min.Illumination

    Day mode : 0.1Lux(F1.6)

  • S/N Rate

    More than 52dB(AGC off, Sense-up off)

  • Lens

    AF Optical zoom lens(DC Iris), IR Corrective

    f=5.3mm~130mm

    F1.6(W)~4.3(T)

    Horizontal 59°(W)~2.4°(T), Vertical 33.6°(W)~1.4°(T)

  • Zoom Ratio

    Optical 25x / Digital 12x

  • Focus Min.Working Distance

    0.1m(Wide)/1.5m(Tele)~Infinite

  • Focus Control

    Auto/Manual/Interval/One Shot/Preset

  • AE mode

    Auto/Shutter Priority/Iris Priority/Manual/Bright

  • Brightness

    0~14

  • Manual Shutter

    1/1, 1/2, 1/4(3), 1/8(6), 1/15(12),1/30(25), 1/60(50)~1/30000

  • Manual Iris

    F1.6~F19, Close

  • Sense-up

    Off~32fields

  • ETC

    Spot AE, Slow AE

  • D&N Mode

    Auto/Day(Color)/Night(BW)/External-H or L

  • White Balance

    AUTO/ATW/Indoor/Outdoor/One push/Manual

  • Image Freeze

    Off/On

  • Image Flip

    Off/Horizontal/Vertical/H+V(180° Flip)

  • Privacy Mask Zone

    16 Zones/14 mask color selectable

    Semi-transparency

  • Digital Image Stabilization

    Yes

  • Motion Detection

    4 Zones

  • D-WDR

    Off/Low/Middle/High

  • WDR

    Off/Low/Middle/High

  • BLC

    Off/On, Area selectable

  • HLC

    Off/0~20, Color selectable

  • AGC

    Max.58dB

  • Sharpness

    Adjustable(0~15)

  • 3D-DNR

    On/Off(1~5)

  • 2D-DNR

    Auto/Manual

  • Defog

    Off/Low/Middle/High

  • Language

    English,Janpanese,Russian,Spanish,German,

    France,Portuguese,Chinese

  • UART

    RS232 TTL +5.0V(+3.3V compatible)

    VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection

    2400/4800/9600/19200/38400/57600/115200bps

    TVI-UTC

  • Supply Voltage

    12VDC(9V to 15VDC)

  • Power Consumption

    Max.5.2W / Non-working zoom&focus 3.2W

  • Dimension(mm)

    50.0X58.8X96.1mm

  • Weight

    Approx.240g

  • Operating Temperature

    -10℃~+50℃, Humidity(Less than 90%)

  • Storage Temperature

    -20℃~+60℃, Humidity(Less than 90%)

  • Optional Product

    Video output

    LVDS,TVI,AVI,HD/EX-SDI,CVBS
