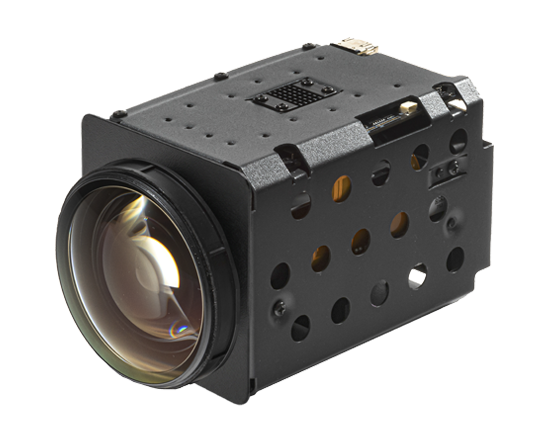

GLOBAL SHUTTER 4K

ATC-UZ5707U-H

1" Progressive Scan CMOS

84x AF Zoom(7x optical zoom, 12x digital zoom)

4K UHD 30/25fps

P-Iris

Mechanical Day&Night

True WDR

3D DNR, Defog

UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

SPECS

  • Image Sensor

    1" Progressive Scan CMOS

  • Effective Pixels

    8.95MP 4112(H) x 2176(V)

  • Video Output Mode

    HDMI(1.4b) / CVBS

  • Max. Video Resolution

    HDMI(1.4b) : 3840x2160@30(50fps)

  • Synchronization System

    Internal

  • Min.Illumination

    Day mode: 0.1Lux(F1.6)

    Night mode: 0.06Lux(F1.6/ IR-cut filter on) Sens-Up off, AGC28dB

  • S/N Rate

    More than 52dB(AGC off, Sense-up off)

  • Lens

    AF Optical zoom lens(P-Iris), IR Corrective

    f=12mm~84mm

    F1.5(W)~2.6(T)

    Horizontal 61.19°(W)~9.66°(T), Vertical 34.75°(W)~5.12°(T)

  • Zoom Ratio

    Optical 7x / Digital 12x

  • Focus Min.Working Distance

    0.5m(Wide)/2.5m(Tele)~Infinite

  • Focus Control

    Auto/Manual/Interval/One Push/Preset

  • AE mode

    Auto/Shutter Priority/Iris Priority/Manual

  • Brightness

    0~14

  • Manual Shutter

    1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000

  • Manual Iris

    F1.5~F32, Close

  • Sense-up

    Off~32fields

  • ETC

    Spot AE, Slow AE

  • D&N Mode

    Auto/Day(Color)/Night(BW)/External-H or L

  • White Balance

    AUTO/ATW/Indoor/Outdoor/OnePush/Manual

  • Image Freeze

    Off/On

  • Image Flip

    Off/Horizontal/Vertical/H+V(180° Flip)

  • Privacy Mask Zone

    16 Zones/14 mask color selectable, semi-transparency

  • Digital Image Stabilization

    Yes

  • Motion Detection

    4 Zones

  • D-WDR

    Off/Low/Middle/High

  • WDR

    Off/Low/Middle/High

  • BLC

    Off/On, Area selectable

  • HLC

    Off/0~20, Color selectable

  • AGC

    Max.48dB

  • Sharpness

    Adjustable(0~15)

  • 3D-DNR

    On/Off(1~5)

  • 2D-DNR

    Auto/Manual

  • Defog

    Off/Low/Middle/High

  • Language

    English

  • UART

    RS232 TTL +5.0V(+3.3V compatible)

    VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection)

    2400/4800/9600/19200/38400/57600/115200bps

  • Supply Voltage

    12VDC(9V to 15VDC)

  • Power Consumption

    Max.8.7W / Non-working zoom&focus 6.9W

  • Dimension(mm)

    80X88X154.3mm

  • Weight

    Approx.885g

  • Operating Temperature

    -10℃~+50℃, Humidity(Less than 90%)

  • Storage Temperature

    -20℃~+60℃, Humidity(Less than 90%)

  • Optional board

    HDMI TO MIPI convertor board
