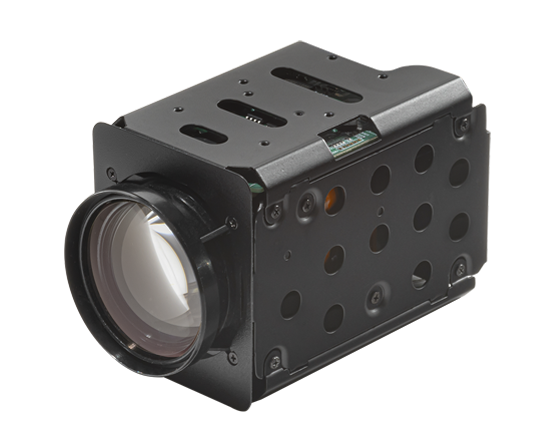

ATC-HZ5230T-LC
1/2.8 Progressive Scan CMOS
300x AF Zoom(30x optical zoom, 12x digital zoom)
1080p 60/50/30/25fps
Mechanical Day&Night
True WDR
3D DNR, Defog
UART RS232-TTL(Pleco-D, VISCA, Hitachi)
SPECS
-
Image Sensor
1/2.8" Progressive Scan CMOS
-
Effective Pixels
2.13MP 1945(H) x 1097(V)
-
Video Output Mode
LVDS/CVBS
-
Max. Video Resolution
LVDS :1080p@60(50fps)
-
Synchronization System
Internal / External Option
-
Min.Illumination
Day mode: 0.01Lux(F1.6)
Night mode: 0.006Lux(F1.6/ IR-cut filter on) , Sens-Up off, AGC60dB
-
S/N Rate
More than 55dB(AGC off, Sense-up off)
-
Lens
AF Optical zoom lens(DC Iris), IR Corrective
f=4.3mm~129mm
F1.6(W)~5.0(T)
Horizontal 66.9°(W)~2.5°(T), Vertical 39.7°(W)~1.4°(T)
-
Zoom Ratio
Optical 30x / Digital 12x
-
Focus Min.Working Distance
0.01m(Wide)/1m(Tele)~Infinite
-
Focus Control
Auto/Interval/One Push/Manual/Preset
-
AE mode
Auto/Shutter Priority/Iris Priority/AGC Priority/Manual
-
Brightness
0~14
-
Manual Shutter
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000
-
Manual Iris
F1.6~F32, Close
-
Sense-up
Off~32fields
-
ETC
Spot AE, Slow AE
-
D&N Mode
Auto/Day(Color)/Night(BW)/External-H or L
-
White Balance
AUTO/One Push/Indoor/Outdoor/ATW/Manual
-
Image Freeze
Off/On
-
Image Flip
Off/Horizontal/Vertical/H+V(180° Flip)
-
Privacy Mask Zone
8 Zones/14 mask color selectable
-
Digital Image Stabilization
Yes
-
Motion Detection
4 Zones
-
D-WDR
Off/Low/Middle/High
-
WDR
Off/On, Adjustable(Level:0~29, Contrast:0~5, Bright:0~19)
-
BLC
Off/On, Area selectable
-
HLC
Off/On, Area selectable
-
AGC
Max.72dB
-
Sharpness
Adjustable(0~15)
-
3D-DNR
Off/Auto/Low/Middle/High
-
2D-DNR
Off/Auto/Low/Middle/High
-
Defog
Off/On/Auto
-
Language
English
-
UART
RS232 TTL +5.0V(+3.3V compatible)
VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection)
2400/4800/9600/19200/38400/57600/115200bps
-
Supply Voltage
12VDC(9V to 15VDC)
-
Power Consumption
Max.5.3W / Non-working zoom&focus 3.6W
-
Dimension(mm)
50X58.8X90.5mm
-
Weight
Approx.240g
-
Operating Temperature
-10℃~+50℃, Humidity(Less than 90%)
-
Storage Temperature
-20℃~+60℃, Humidity(Less than 90%)
